Piling

We offer a range of piling solutions from pin piles, mini-piling, bottom driven steel cased, open hole augered, DTH, ODEX, CFA, top driven steel / pre-cast concrete, rock sockets, geothermal piles, retaining wall piles.

Safe working loads from 25kn upto 1200kn dependent on ground conditions / engineers requirements.

Our range of bottom driven steel displacement piles are 65mm, 100mm, 150mm, 168mm, 193mm, 220mm, 273mm, 323mm.

Open hole augered piles can be installed in diameters of 150mm, 200mm, 250mm, 300mm, 350mm, 400mm.

ODEX piles can be installed in diameters of 168mm, 220mm, 273mm.

CFA piles can be installed in diameters of 300mm, 350mm, 400mm, 450mm, 500mm, and 600mm.

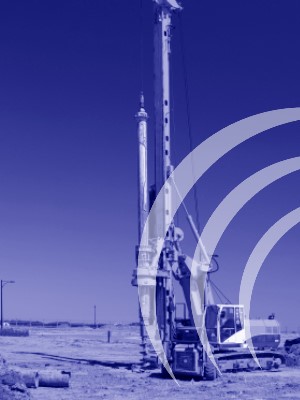

Our modern fleet of piling rigs are low noise / low vibration rigs and our mini rigs can pile in 2.5 meters headroom and pass though a 700mm doorway.

All works are available with full anti-heave protection measures if necessary.



For more information, contact us or call us on 01543 575798
